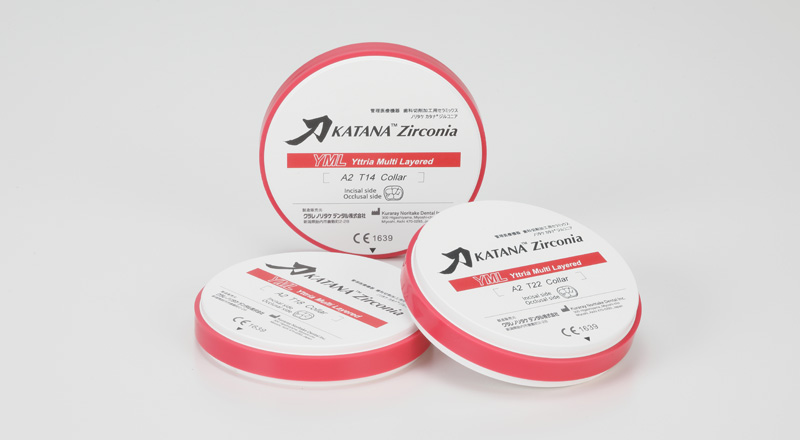

Explore New Possibilities with “KATANA™ Zirconia”

“KATANA™ Zirconia” YML is a new definition of zirconia in dentistry. This product is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology.

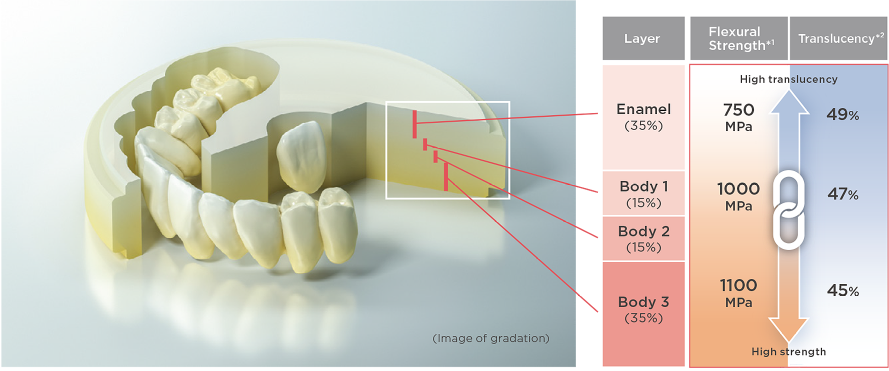

Measurement condition: Evaluated by base material(white color).
　*1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm,
　*2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mm

()in% is the thickness of each in a disc

Data sourse: Kuraray Noritake Dental Inc. The numerical value varies according to a condition.

Features

Benefits

FAST PROCESSING

High-speed sintering (54 minutes) o ers completely new possibilities.
Waiting time is reduced to a minimum. For re-make and rush cases, it is now possible to finish the work easily within one day. In addition, the minimized over-night-sintering cycles enable shorter delivery time to increase your business e ciency.

ALL-IN-ONE SOLUTION

Due to the high translucency and high strength combined within one disc, the entire indication spectrum can be covered. This minimizes your inventory of di erent zirconia discs.

SIMPLE AESTHETICS

A seamless multi-layered technology eliminates visible transition lines, emphasizing natural color and translucency, that ensures a simplified, time-saving procedure.

CONTROLLED FIRING DEFORMATION

Improving the fitting accuracy of restorations after the final sintering process reduces risk of remanufacturing, which is definitely one added benefit for dental labs. No waste of time and materials.

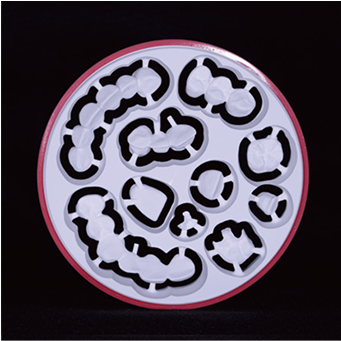

Revolutionary All-In-One Disc Design

Get Much Closer to Your Desire

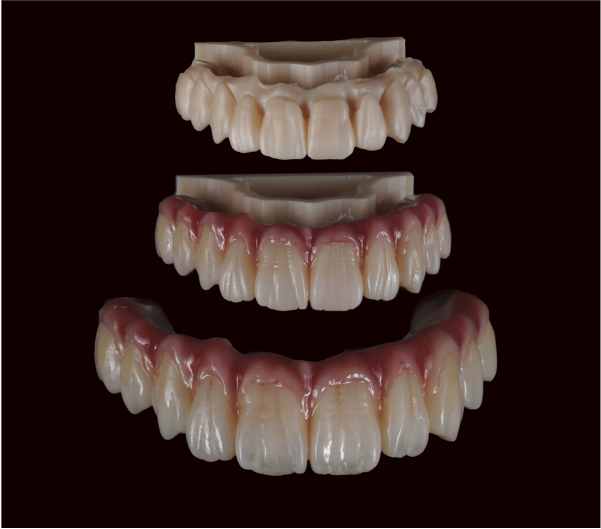

Based on “KATANA™ Zirconia” YML A3 with “CERABIEN™ ZR” FC Paste Stain
Courtesy of DT Marco Stoppaccioli – L’Aquila

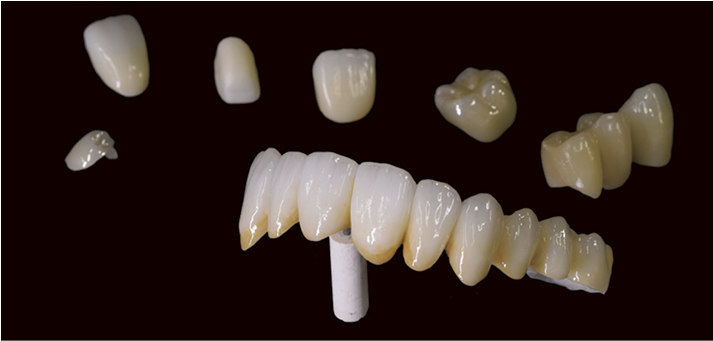

Versatility of Application Range

Exceptional design flexibility is o ered – from veneers up to full-arch restorations. In each case, you may choose a monolithic, cut-back or framework design with the appropriate fabrication procedure depending on individual needs.

All-in-One Solution

✓ Laminate Veneer
✓ Inlay, Onlay
✓ Anterior / Posterior Crown
✓ Long-Span Bridge
✓ Framework

Product Introduction

Possible to Reduce for Thinner Restoration

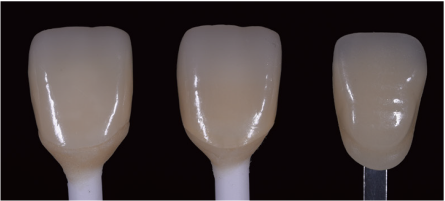

Comparison with High Translucency Zirconia

Comparison with high

KATANA™ Zirconia YML A3	KATANA™ Zirconia STML A3	Shade Guide A3
0.4mm (44%)	0.8mm (41%)
Thickness of Body Layer (Translucency*)

“KATANA™ Zirconia” YML and STML are shown here with body layer thickness adjusted to 0.4*mm for YML, and 0.8*mm for STML. The body layer of YML can be adjusted thinner than that of high translucency zirconia, increasing its translucency even more.

* This is the minimum thickness recommended by the manufacturer.

* Test condition: All light transmittance, Illuminant: D65, Thickness of YML (Body3): 0.4mm, STML (Body3): 0.8mm

High-Speed Sintering Up to 3-Unit Bridge

Outstanding quality paired with velocity is an absolute unique feature of “KATANA™ Zirconia” over all competitive products.

Sintering Program

	Temp.1	Rate of Temp. Increase °C/°F min	Temp.2	Rate of Temp. Increase °C/°F min	Temp.3	Rate of Temp. Increase °C/°F min	Temp.4	Hold Time	Rate of Temp. Increase °C/°F min	Temp.5
54 minute	Room Temp.	120°C/216°F	1450°C/2642°F	10°C/18°F	1600°C/2912°F	-	-	20min.	-120°C/216°F	800°C/1472°F
90 minute	Room Temp.	50°C/90°F	1400°C/2552°F	4°C/7°F	1500°C/2732°F	10°C/18°F	1560°C/2840°F	16min.	-50°C/90°F	800°C/1472°F
7 hour	Room Temp.	10°C/18°F	1550°C/2822°F	-	-	-	-	2-hour.	-10°C/18°F	RT.

The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.
In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.
